Heavy Duty ERT350

Dorner’s new ERT350 is an engineered solution designed to meet the demanding needs of heavy robotic assembly processes.
, ERT350

High Capacity Automated Manufacturing Conveyor

The new ERT350 from Dorner is a robust pallet system for large-scale manufacturing. Perfect for appliance, automotive, and battery production, it utilizes a unique locate-and-drop mechanism that allows it to handle increased load from force by transferring the increased weight to the frame and ground

Features & Specifications

  • Ideal for zoning 24VDC pallet application
  • Pallet Sizes from 800 x 800 mm to 1200 x 1200 mm
  • 1,000 lbs. load per pallet
  • Conveyor drops onto a ridge & precise locate unit mounted directly to the floor, providing a greater working capacity
  • Standard pallets stops are electric
  • Drop linear actuators are 24VDC, made by Duff Norton
  • Robust anodized aluminum rollers (50mm diameter x 100mm length, 100mm pitch)

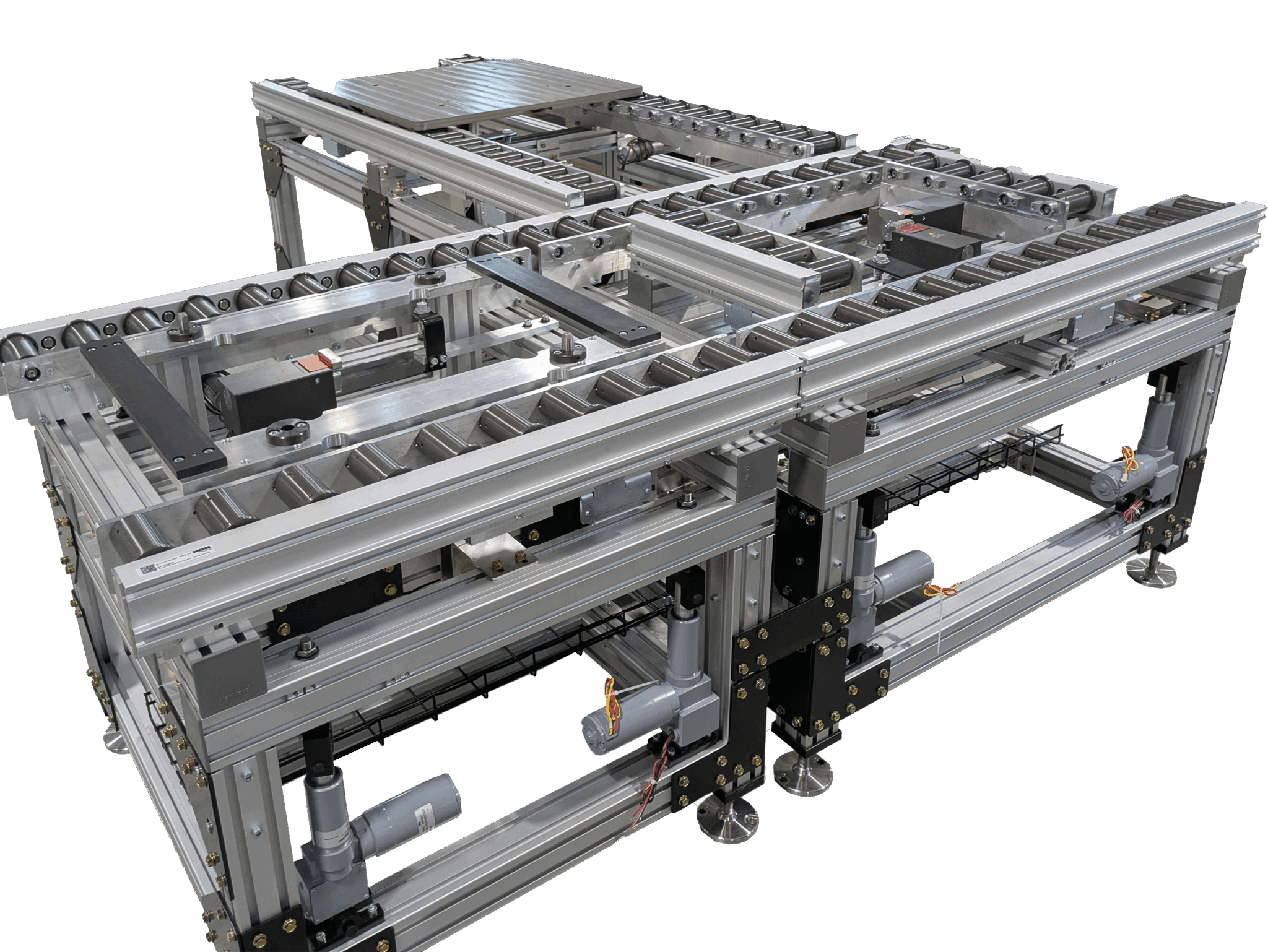

ERT350

Key Benefits of the ERT350

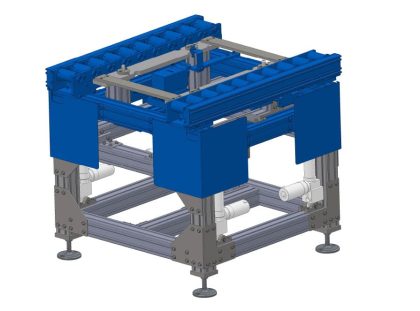

ERT350 Drop Located

Drop & Locate

Utilizing Duff-Norton’s actuators, the ERT 350’s conveyor drop once located by pallet stops. This allows the weight of external force to exceed the pallet weight, for tough applications as riveting, pressing, and torquing bolts.

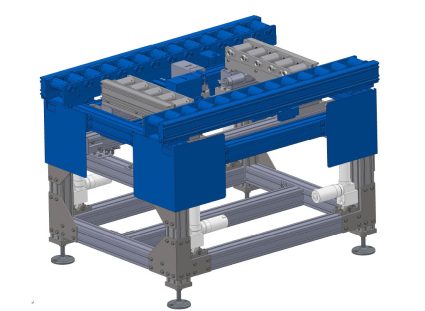

ERT350 Drop and Transfer

Drop & Transfer

The ERT 350 transfer units work in the opposite way as compared to our standard “Lift & Locate”. The mainline conveyor drops utilizing Duff-Norton’s actuators while the transfer conveyor remains in place.
